Specifications
?Voltage Rating: 250V/125V/100V/72V/63V/32Vdc
?Amperage Rating: 20-100A
?Size: 4.5*4.5*12.4mm
Applications
?PC server and Telecom systems
? Power Supplies
?LCD TV inverter boards DC input protection
? High end servers / Blade computing
? Base station power supply
? Voltage regulator module
?Cooling fan system for PC Server
?Battery Management System (Industrial Tools)
? ATCA applications for cloud computing
?Uninterruptible Power Supply (UPS)/3-Phase
?PC server and Telecom systems
? Blade Servers
?Lithium Battery，Rechargeable
? LCD TV inverter boards DC input protection
?Routers Bicycle
Agency information
File Number: E365879, Guide JDYX2/JDYX8
Product Characteristics
? Low voltage drop
? High Reliability Solder less Fuse
? High pulse resistance
? Lead-free--compatible with lead-free solders
? And higher temperature profiles
? Halogen-free and RoHS compliant
? UL Recognized to UL248-1
? Indicates compliance with Low-Voltage and RoHS Directives

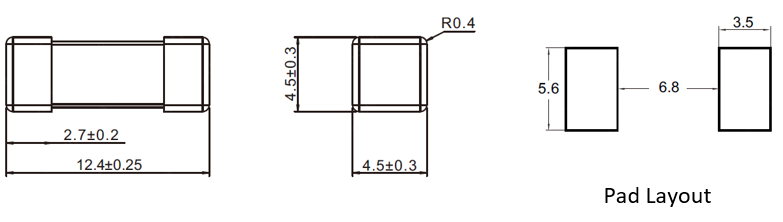

Dimensions(mm)
Catalogue Numbers
Series | Part No. | Rated Current(A) | Rated Voltage(V) Breaking Capacity | Typical Cold | Typical | |
HVH2 | 1245FF | 1245FF.15 | 15 | 250V @ 200A | 3.300 | 366.000 |
1245FF.20 | 20 | 2.500 | 630.000 | |||
1245FF.25 | 25 | 1.800 | 850.000 | |||
1245FF.30 | 30 | 1.550 | 1300.000 | |||
1245FF.40 | 40 | 1.300 | 1750.000 | |||
1245FF.50 | 50 | 1.050 | 2900.000 | |||
1245FF.60 | 60 | 0.755 | 3450.000 | |||
*1245FF.70 | *70 | 72V @ 1000A | 0.620 | 4600.000 | ||
*1245FF.80 | *80 | 0.550 | 5200.000 | |||
*1245FF.100 | *100 | 0.400 | 7900.000 | |||
